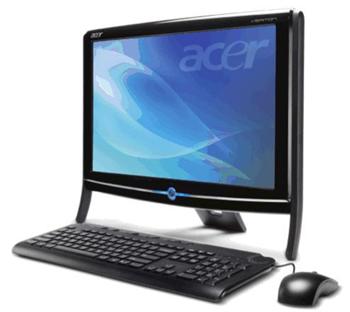

Acer Veriton Z2610G ALL-IN-ONE 20,1"Non-touch, Intel Pentium DualCore G840 2.8GH/2GB/500GB/DVD RW/W7Pro64 bit

Veriton Z2610G (Intel) - Originální Windows® 7 Professional 64/32 - 20.1" LED HD+ Non-Touch - Intel Pentium DualCore G840 2.8GHz - 1x2G DDR3 - 500GB HDD - DVD±RW - Intel® HD Graphics - USB klávesnice a myš



Technická specifikace  - obecná pro řadu


Model Veriton Z2610G
Chipset Intel
- North Bridge N/A
- Sourth Bridge H61
Housing kit All in one
- Chassis name AIO 20 black
- Bezel N/A
- Dimension (mm) 62(W)x500(L)x345(H)
- Number of 5.25" ODD bays 1(Slim, Tray)
- Number of 3.5" external bays 0
- Number of 3.5" internal bays 1
- Front IO ports 2 USB2.0 ports / 2 sudio jack
- Tool-less Chassis design No
Power supply 135W
- Non-PFC No
- PFC Yes (Full range)
BIOS AMI
- ACER BIOS Copyright Yes
- DMI 2.0 compliance Yes
- WFM 2.0 compliance Yes
Mother Board
- Form Factor AIO
- 100% Solid capacitors
- FMB / TDP 65 W
- CPU Intel
- CPU Type Sandy Bridge
- CPU  Socket Type LGA 1155
- Memory SODIMM
- Memory Type DDRIII 1333
- Dual/Single Channel Memory Dual
- Number of Memory Slots 2
- Maximum Memory Onboard 8GB
- Required minimum System Memory size 1GB
- HDD
- HDD Interface SATA 3.0Gb/s
- Number of SATA Ports 2
- Number of PATA Ports 0
- VGA
- Intergrated Graphics Intel GMA HD
- Max. shareVGA memory Follow DVMT 5.0 spec
- LAN
- LAN Speed 10/100/1000 Mbps
- Integrated LAN controller N/A
- LAN PHY N/A
- Independent LAN Controller RTL8111DL
- Audio
- Audio codec Realtek ALC269
- Sound playback High Definition (2 chl)
- Rear Audio Jacks 0
- Front Audio Jacks 2 (side)
- 1394 Yes
- 1394 chip onboard
- Expansion
- FDD header (3.5" 1.44MB) No
- Number of PCIe x 16 slot 0
- Number of PCIe x 1 slot 1(Mini PCIe for WLAN)
- Number of PCI slots 0
- Dsub Port Yes
- DVI port No
- HDMI Port No
- Display Port No
- Number of e-SATA ports 0
- Number of Serial Ports (COM1) 1
- Number of Serial Ports on board header (COM2) 0
- Number of Parallel Ports 0
- Number of Front USB Ports 2 (side)
- Number of Rear USB Ports 4
- Number of PS2 ports 2
AIO Panel Spec
- Support Touch ? (Y/N) N
- Size (inch) 20"
- Glare (Y/N) N
- Pixel Pitch (mm)
- Max. Resolution 1600*900
- Backlight WLED
- Brightness (cd/m2) 250 nits
- Response Time (ms) 5
- Contrast Rate 1000:1
- View Angle
Management Standard
- WOL (Wake on LAN) Yes
- PXE (Boot from LAN) Yes
- Intel vPro Logo No
- Intel AMT No
- ASF/Intel RPAT/DASH ASF
- DMTF Yes
Security features
- TPM support Optional (with TPM D/B)
- HDD password support Yes
- Chassis Intrusion No
- Chassis physical lock - Kensington & Pad lock Yes
System features
- One Button recovery (OBR) Yes
- RAID support No
- Jumper Setting Label No
Selected solution
- Acer PCGuard No
- Dust resistant filter No
- Internal Speaker No
- 2nd COM port cable No
- LPT port cable No
Certification
- General CE, FCC, BSMI, CCC, Nemko, VCCI, MET
- Eup lot6 Yes
- Energy star 5.0 compliance Yes
- EPEAT No
- HSF No
- GS No
- Acoustic standard  ( operating / idle ) 28dB / 23dB
Operation System support
- W7PR 32bit Yes
- W7PR32/XPP dual load No
- W7PR 64bit Yes
- W7PR32/64bit dual load Yes
- VB 64bit No
- VB 32bit No
- XPP No
- Linpus Linux X-window Yes
- FreeDOS Yes
