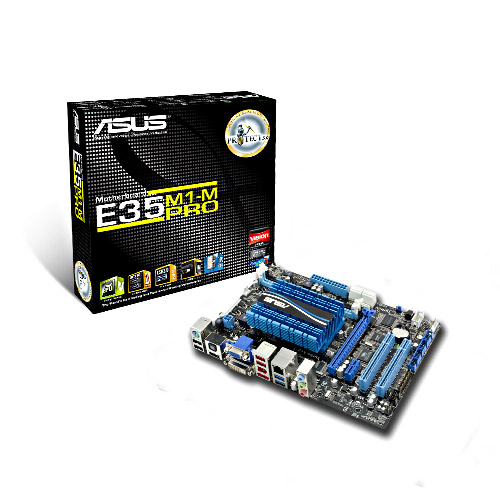

ASUS E35M1-M PRO, AMD Zacate, AMD Hudson M1, DDR3, VGA, 8CH, USB3.0, uATX

Země                 Servisní linka           Provozní hodiny
Česká republika 00420 596 766 888 08:00-17:00 Po ~ Pá
Slovenská republika 00421 232 162 621 08:00-17:00 Po ~ Pá

CPU AMD CPU on Board ;Integrated dual-core AMD® Zacate™ 18W Processors
AMD Cool 'n' Quiet™ Technology
Up to 2 "Bobcat" cores,DX11 GPU,FT1 BGA
Chipset AMD Hudson M1

System Bus Up to 2500 MT/s ; UMI Link
Memory  2 x DIMM, Max. 8 GB, DDR3 1066 Non-ECC,Un-buffered Memory
Single Channel memory architecture
* Please refer to www.asus.com or user manual for Memory QVL.

Expansion Slots  1 x PCIe 2.0 x16 @X4
1 x PCIe 2.0 x1
2 x PCI 3.0

VGA  Integrated AMD® Zacate™ graphics
Max. UMA Memory Size: 1G
Supports DVI with HDCP compliant with Max. resolution: 1920X1080 @60 HZ
Supports HDMI™ Technology with max. resolution up to 1920X1080 @ 60Hz
Supports RGB with max. resolution 2560X1600 @ 60Hz
Supports Microsoft® DirectX 11
Hardware Decode Acceleration for H.264,VC-1, and MPEG-2
DVI Single-link
Dual VGA output support: RGB & DVI, RGB & HDMI
Storage  Southbridge
5 xSATA 6.0 Gb/s ports
1 xExternal SATA (6Gb/s Ready)

LAN  Realtek® 8111E Gigabit LAN
Audio   ALC887-VD2 High Definition 8-Channel Audio (3jacks)
- Optical S/PDIF out port at back I/O
- Supports Multi-Streaming, Vista Premium;Anti-pop Function (Power On/Off; Resume S3/S4); Front Panel Retasking
* Choose the chassis with HD audio module in front panel to support 8-Channel audio output
USB ASM Controller:
- 2 x USB 3.0/2.0 ports (@back)
Chipset built-in:
- 12 x USB 2.0/1.1 ports (8@board, 4@back)

ASUS Unique Features  ASUS EPU
ASUS AI Suite II
ASUS Turbo KeyII
ASUS Turbo Key
ASUS TurboV
ASUS Anti-Surge
ASUS low EMI
ASUS CrashFree BIOS 3
ASUS EZ Flash 2
ASUS My logo 2
ASUS EFI BIOS(EZ Mode)
ASUS Fan Xpert

Overclocking Features Intelligent overclocking tools
- Turbo Key
- Turbo Key II
- TurboV
SFS (Stepless Frequency Selection)
- FSB tuning from 80MHz up to 300MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)

Back Panel I/O Ports  1 x PS/2 Keyboard/Mouse Combo port
1 x DVI
1 x D-Sub
1 x HDMI
1 x External SATA (6Gb/s Ready)
1 x IEEE 1394a
1 x LAN(RJ45) port(s) (Gigabit LAN)
2 x USB 3.0/2.0
4 x USB 2.0/1.1
1 x S/PDIF Out (Optical)
8-Channel Audio I/O(3 jacks)
Internal I/O Connectors  4 x USB 2.0/1.1 connector(s) supports additional 8 USB2.0 ports
5 x SATA 6.0Gb/s
1 x IEEE 1394a connector
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x LPT connector
1 x S/PDIF Out connector
1 x 24-pin EATX Power connector
1 x 4-pin ATX 12V Power connector
1 x Front panel audio connector
1 x COM connector
1 x System Panel connector
1 x Turbo key II Switch

BIOS  32 Mb Flash ROM , EFI BIOS, PnP, DMI 2.0, WfM 2.0, ACPI 2.0a, SM BIOS 2.5

Accessories User's manual
1 x I/O Shield
2 x SATA 6.0Gb/s
1 x CPU FAN
1 x Support DVD
Support Disc Drivers
ASUS PC Probe II
Anti-virus software (OEM version)
ASUS Update

Form Factor  uATX Form Factor
9.6 inch x 7.2 inch ( 24.4 cm x 18.3 cm )
