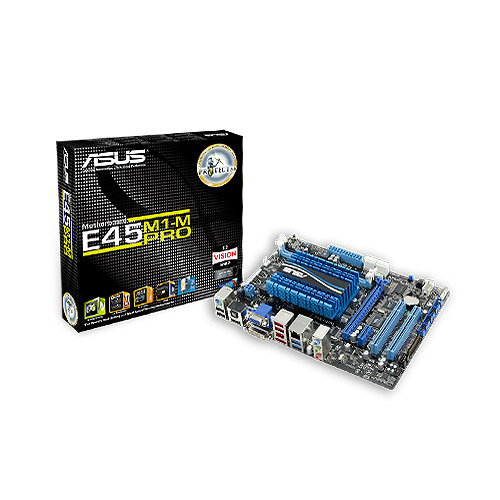

ASUS E45M1-M PRO

Země                 Servisní linka           Provozní hodiny
Česká republika 00420 596 766 888 08:00-17:00 Po ~ Pá
Slovenská republika 00421 232 162 621 08:00-17:00 Po ~ Pá



CPU

AMD Fusion APU E-450 Dual-Core onboard Processors
Supports AMD® Turbo Core Technology



Chipset

AMD FCH A50M (Hudson M1)



Memory

2 x DIMM, Max. 8GB, DDR3 1600(O.C.)/1333/1066 MHz Non-ECC, Un-buffered Memory
Single Channel Memory Architecture
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.



System Bus

Up to 2.5 GT/s UMI Link



Graphic

Integrated ATI Radeon™ HD 6320 GPU
Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI with max. resolution 1920 x 1080 @ 60 Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 2560 x 1600 @ 60 Hz
Supports DirectX 11



Expansion Slots

1 x PCIe 2.0 x16 (x4 mode)
1 x PCIe 2.0 x1
2 x PCI



Storage

Built-in Controller :
5 x SATA 6Gb/s port(s), white
1 x eSATA 6Gb/s port(s), red



LAN

Realtek® 8111E , 1 x Gigabit LAN Controller(s)



Audio

Realtek® ALC887 8-Channel High Definition Audio CODEC *1
- Supports : Multi-streaming, Front Panel Jack-retasking, Anti-pop Function
Audio Feature :
- Optical S/PDIF out port(s) at back panel



USB Ports

ASMedia® USB 3.0 controller :
2 x USB 3.0 port(s) (2 at back panel, blue)
Built-in Controller :
12 x USB 2.0 port(s) (4 at back panel, black+red, 8 at mid-board)



Special Features

ASUS EPU :
- EPU
ASUS Protect 3 Technology :
- Anti-Surge Protection
- Low EMI Solution
Turbo Key
Turbo Key II
TurboV
ASUS Exclusive Features :
- AI Suite II
- Ai Charger+
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2



Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x D-Sub
1 x HDMI
1 x eSATA 6Gb/s
1 x IEEE 1394a
1 x LAN (RJ45) port(s)
2 x USB 3.0
4 x USB 2.0
1 x Optical S/PDIF out
3 x Audio jack(s)



Internal I/O Ports

4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
1 x COM port(s) connector(s)
5 x SATA 6Gb/s connector(s)
1 x IEEE 1394a connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x parallel port connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Turbo Key II switch(es)



Accessories

User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x CPU FAN



BIOS

32 Mb Flash ROM, UEFI BIOS, PnP, DMI 2.0, WfM 2.0, ACPI 2.0a, SM BIOS 2.6



Support Disc

Drivers
ASUS PC Probe II
ASUS Update
Anti-virus software (OEM version)



Form Factor

uATX Form Factor
9.6 inch x 7.2 inch ( 24.4 cm x 18.3 cm )



Note

*1: Choose the chassis with HD audio module in front panel to support 8-Channel audio output.
