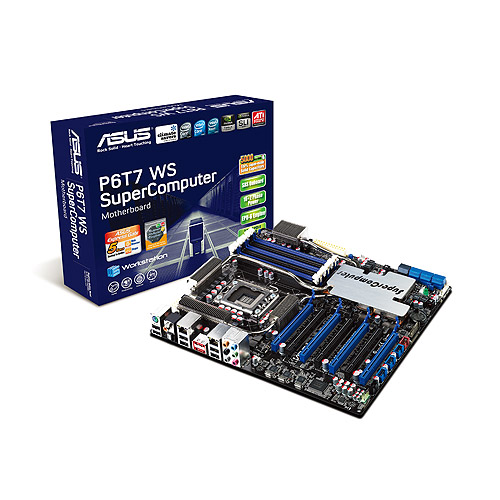

ASUS P6T7 WS SuperComputer, 1366, X58, 6xDDR3, 3xPCIe, 2xGL, 7.1, FW

Země                 Servisní linka           Provozní hodiny
Česká republika 00420 596 766 888 08:00-17:00 Po ~ Pá
Slovenská republika 00421 232 162 621 08:00-17:00 Po ~ Pá

Specifications
CPU Intel® Socket 1366 Core™ i7 Processor Extreme Edition/Core™ i7 Processor LGA1366 socket for Intel® Xeon® processor 3500 Series
LGA1366 socket for Intel® Xeon® processor E5502/E5504/E5506
Supports Intel® Dynamic Speed Technology
*Refer to www.asus.com for Intel CPU support list

Chipset Intel® X58 + ICH10R
Nvidia NF200*2

System Bus Up to 6400 MT/s ; Intel® QuickPath Interconnect
Memory  6 x DIMM, Max. 24 GB, DDR3 2000(O.C.)/1866(O.C.)/1800(O.C.)/1600(O.C.)/1333/1066 ECC,Non-ECC,Un-buffered Memory
Triple channel memory architecture
*Support Intel Extreme Memory Profile (XMP)
** Due to Intel spec definition, DIMMs of DDR3-1800 or above are supported by specific CPU models only.
*** Please load X.M.P or D.O.C.P setting in BIOS for hyper DIMM (DDR3 1800MHz or above) support."
**** Refer to www.asus.com or this user manual for the Memory QVL (Qualified Vendors Lists)
Expansion Slots  3 x PCIe 2.0 x16 (@ x16 or x8)
3 x PCIe 2.0 x16 (@ x8)
1 x PCIe 2.0 x16 (@ x16)
Multi-GPU Support Supports NVIDIA® 3-Way Geforce SLI™ techonology
Supports ATI® CrossFireX™ technology, up to Quad CrossFireX™
Storage  Intel ICH10R controller
6 xSATA 3 Gb/s ports
Intel® Matrix Storage Support RAID 0,1,5,10
Ext Marvell 88SE6121 SATA controller
2 x eSATA 150/300 (RAID 0,1)*
Ext Marvell 88SE6320 SAS controller
2 x SAS (RAID 0,1)*
LAN  2 x Realtek 8111C Dual Gb LAN (Support teaming function)
Audio   ADI 2000B 8 -Channel High Definition Audio CODEC
ASUS Noise Filter
Multi-Streaming
Jack-Sensing
Front Panel Jack-Retasking
Coaxial / Optical S/PDIF out ports at back I/O
IEEE 1394  VIA VT6315N controller supports 1 x 1394a ports
USB  12 USB 2.0 ports
ASUS Unique Features  EPU - 6 Engine
True 16+2 Phase Power Design
TurboV
Fan Xpert
Express Gate
AI Nap
Q-Shield
Q-Connector
Fanless Design: Heat-pipe solution
Fanless Design: Stack Cool 2
My Logo 2
CrashFree BIOS 3
EZ Flash 2
C.P.R.(CPU Parameter Recall)
SFS (Stepless Frequency Selection)
O.C. Profile

ASUS Workstation Special Features 7 PCIe x 16 slots
G.P. Diagnosis Card bundled
ASUS SASsaby Cards support
ASUS WS Diag. LED
ASUS WS Heartbeat
SAS Onboard
Back Panel I/O Ports  2 x External SATA
1 x S/PDIF Out (Coaxial + Optical)
2 x LAN(RJ45) port
6 x USB 2.0/1.1
8 -Channel Audio I/O
PS/2 KB/MS port
Internal I/O Connectors  24-pin EATX Power connector
8-pin ATX +12V Power connector
Chassis intrusion
CPU fan with PWM control
Chassis fan1 with Q-fan control
Chassis fan2 with Q-fan control
Chassis fan3 with Q-fan control
PWR fan
CD audio in
3 x USB connectors support additional 6 USB ports
20-pin Panel connector
1 x IEEE 1394a port
TPM header
S/PDIF Out header
Front panel connector

BIOS  16 Mb Flash ROM
AMI BIOS, Green, PnP, DMI v2.0, Wfm2.0, ACPI v2.0a, SMBIOS v 2.4, BIOS flash utility under DOS

Manageability WOL/WOR by PME,WOR by Ring,Chasis Intrusion,AI NET2
Support Disc ASUS PC Probe II
ASUS AI Suite
Anti-virus software (OEM version)
ASUS Update
Adobe Acrobat Reader ver 8.0
Microsoft DirectX ver 9.0C
Image-Editing Suite

Form Factor  CEB Form Factor
12 inch x 10.5 inch ( 30.5 cm x26.9 cm )
