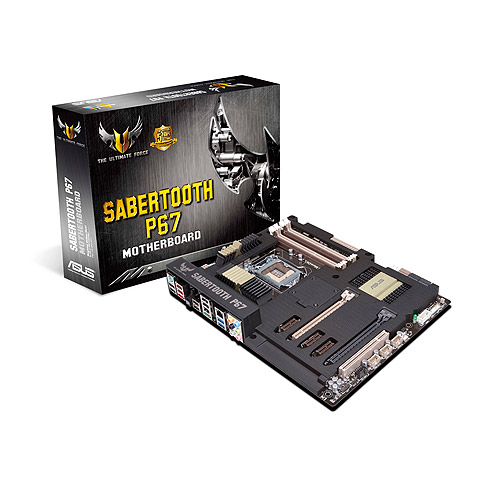

ASUS SABERTOOTH P67, 1155, DDR3, 2xPCIe16, GL, 8CH, FW, USB3.0 <Rev.3.0>

Země                 Servisní linka           Provozní hodiny
Česká republika 00420 596 766 888 08:00-17:00 Po ~ Pá
Slovenská republika 00421 232 162 621 08:00-17:00 Po ~ Pá

Specifications
CPU Intel® Socket 1155 for Intel® 2nd Generation Core™ i7 Processor/Core™ i5 Processor/Core™ i3 Processor/
Support Intel® 32nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types
* Refer to www.asus.com for Intel CPU support list

Chipset Intel® P67 Express Chipset
Memory  4 x DIMM, Max. 32 GB, DDR3 1866/1800/1600/1333/1066 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
* According to Intel® SPEC, the Max. 32GB memory capacity can be supported with DIMMs of 8GB (or above). ASUS will update QVL once the DIMMs are available on the market.
* Hyper DIMM support is subject to the physical characteristics of individual CPUs. Some hyper DIMMs only support one DIMM per channel. Please refer to Memory QVL for details.
* Due to CPU behavior, DDR3 1800 MHz memory module will run at DDR3 1600 MHz frequency as default.
* Please refer to www.asus.com or user manual for Memory QVL.

Expansion Slots  2 x PCIe 2.0 x16 (single at x16 or dual at x8/x8 mode)
3 x PCIe 2.0 x1
1 x PCI

Multi-GPU Support Supports NVIDIA® Quad-GPU SLI™ Technology
Supports ATI® Quad-GPU CrossFireX™ Technology
Storage  Intel® P67 Express Chipset
2 xSATA 6.0 Gb/s ports (brown)
4 xSATA 3Gb/s ports (black)
Intel® Rapid Storage Technology Support RAID 0,1,5,10
Marvell® PCIe SATA 6Gb/s controller
2 xSATA 6Gb/s ports (gray)
JMicron® JMB362 SATA controller
1 xPower eSATA 3Gb/s port (green)
1 xExternal SATA 3Gb/s port (red)
LAN  Intel® 82579 Gigabit LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
Audio   Realtek® ALC892 8-Channel High Definition Audio CODEC
- Absolute Pitch 192khz/24bit True BD Lossless Sound
- BD Audio Layer Content Protection
- Supports Jack-Detection, Multi-streaming, and Front Panel Jack-Retasking
- Optical S/PDIF out port at back I/O
IEEE 1394  VIA® VT6308P controller supports  2  x 1394a port(s)  (one at mid-board; one at back panel)
USB NEC USB 3.0 controllers
- 4 x USB 3.0/2.0 ports (2 ports at mid-board for front panel support; 2 ports at back panel [blue])
Intel® P67 Express Chipset
- 14 x USB 2.0/1.1 ports (6 ports at mid-board, 8 ports at back panel)

ASUS Unique Features  Exclusive TUF Features
"Ultimate COOL!" Thermal Solution
- TUF Thermal Armor
- TUF Thermal Radar
"TUF ENGINE!" Power Design
- 8+2 Digital Phase Power Design
- TUF Components (Alloy choke, Cap. & MOSFET; certified by military-standard)
- ASUS DIGI+ VRM Utility
- E.S.P. : Efficient Switching Power Design
"Safe & Stable!" Guardian Angel
- ESD Guards
- MemOK!
- Anti Surge

Other Special Features
- Front Panel USB 3.0 Support
- ASUS EFI BIOS EZ Mode featuring friendly graphics user interface
- AI Suite II
- ASUS Q-Connector
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS

Back Panel I/O Ports  1 x PS/2 Keyboard/Mouse Combo port
1 x External SATA 3Gb/s port (red)
1 x Power eSATA 3Gb/s port (green)
1 x IEEE 1394a
1 x LAN(RJ45) port(s)
2 x USB 3.0/2.0 ports (blue)
8 x USB 2.0/1.1 ports
1 x S/PDIF Out (Optical)
8 -Channel Audio I/O

Internal I/O Connectors  1 x USB 3.0/2.0 connector(s) supports additional 2 USB ports (19-pin; moss green)
3 x USB 2.0/1.1 connector(s) support additional 6 USB ports
1 x MemOK! button
4 x SATA 6.0Gb/s connectors ( 2 x gray; 2 x brown)
4 x SATA 3.0Gb/s (black)
1 x IEEE 1394a connector
1 x CPU Fan connector(s) (4-pin)
2 x Chassis Fan connector(s) (1 x 4-pin; 1 x 3-pin)
1 x Power Fan connector(s) (3-pin)
1 x Assistant Fan connector (3-pin)
1 x S/PDIF Out connector
24-pin EATX Power connector
8-pin EATX 12V Power connector
1 x Front panel audio connector
1 x COM connector
1 x System Panel (Q-Connector)
1 x Clear CMOS jumper

BIOS  32 Mb Flash ROM , EFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Manageability WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE
Accessories User's manual
2 x SATA 3.0Gb/s cables
2 x SATA 6.0Gb/s cables
1 x Q-Shield
1 x Q-Connecor (2 in 1)
1 x ASUS SLI bridge cable
1 x TUF Certification card
1 x TUF 5 Year Warranty manual (by region)
4 x screws for Assistant Fan
Support Disc Drivers
Anti-virus software (OEM version)
ASUS Update
ASUS Utilities

Form Factor  ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
