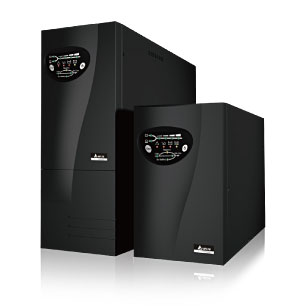

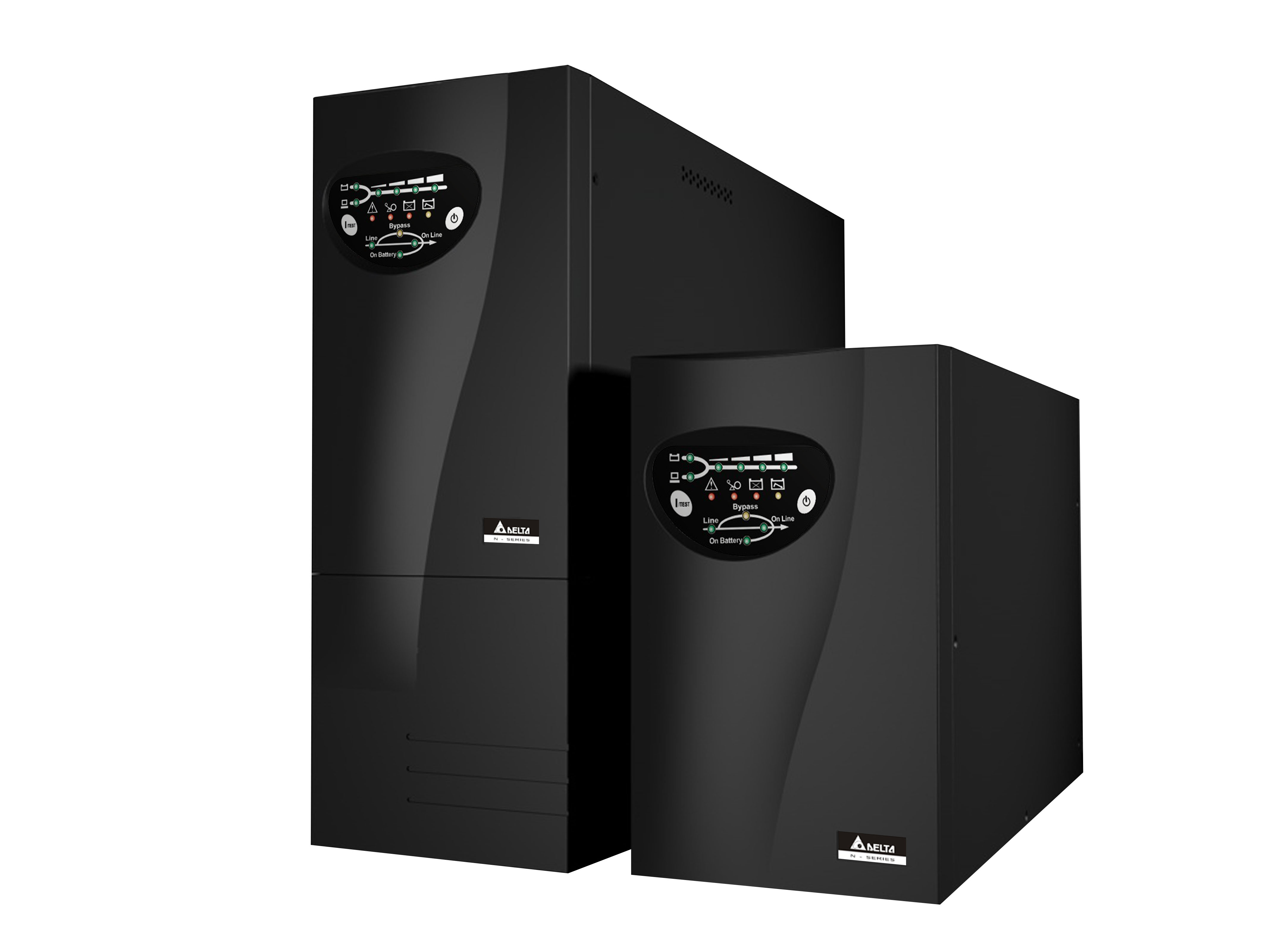

Delta UPS 1KVA OnLine N series

Technical Specifications

Power Rating : 1kVA/700W

Input

Nominal Voltage : 230 Vac (single phase)
Voltage Range : 80 ~ 280 Vac (full load)
Frequency: 40 - 70 Hz
Power Factor > 0.97
Electrical Connection: Power cord (IEC320 C14)
Voltage: 230 Vac (single phase)

Output

Voltage Regulation: ± 2%
Frequency: 50 / 60 ± 0.05 Hz
Wave Form: Pure sine wave
Transient Response: < 8%
Voltage Harmonic Distortion: < 3% (linear load)

Overload Capability:
105 ~ 125%: 3 minutes
125 ~ 150%: 30 seconds
> 150%: 1 second

Receptacle: IEC320 C13 x 4

Battery

Rating: 12V/7Ah, 3 pcs

Typical Backup Time
14 minutes (half load)
5 minutes (full load)

Recharge Time: 8 hours to 80 ~ 90%

Electrical Connection

Exclusive cable

Interface
Standard: RS232 x 1, Smart slot x 1

Conformance

Safety & EMC: EN62040-1, CISPR 22 Class A

Other Features

Data Line Protector

Optional (RJ11/RJ45, phone and network)

External Battery Pack

Optional
Efficiency: AC-AC > 87% (full load)

Environment

Operating Temperature: 0 ~ 40oC

Relative Humidity: 5 ~ 95% (non-condensing)

Audible Noise (at one meter): 40 dBA

Physical
Dimensions (WxDxH): 140 x 366 x 242 mm
Weight: 14 kg
