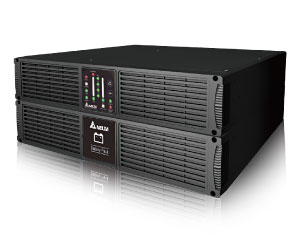

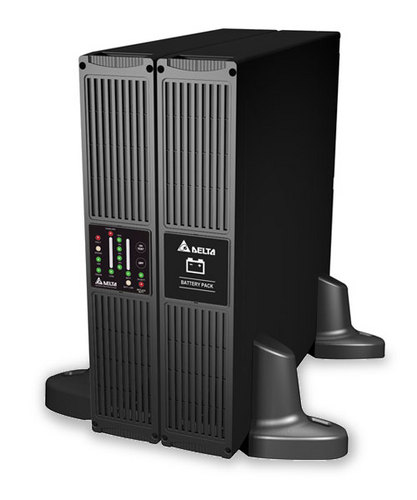

Delta UPS 3KVA OnLine GAIA


Delta UPS 3KVA OnLine GAIA

The Amplon GAIA series is a true on-line, double-conversion UPS designed in a rack or tower configuration and recommended for servers, VoIP, telecommunications and networking.This versatile UPS combines features such as full-time protection and high in...Více info

Kód
PV092243
Part No.
GES302R200035
Výrobce
Delta Electronics
Záruka
24 Měsíce

    Základní informace

    The Amplon GAIA series is a true on-line, double-conversion UPS designed in a rack or tower configuration and recommended for servers, VoIP, telecommunications and networking.This versatile UPS combines features such as full-time protection and high input power factor in the small footprint of a 2U cabinet.

    The Amplon GAIA series UPS has inbuilt batteries to provide continuous and stable power to your critical loads when power events occur. With an external battery pack, it can fulfill longer backup time requirements.

    Features

    Double-conversion technology provides 24/7 full-time protection.

    Built-in batteries for basic runtime demands.

    Battery-start capability without utility power.

    RS232 and USB connectivity with power management software.

    Built-in data line surge protector for phone/fax/network.

    Rack or tower configuration in 2U size cabinet.

    Optional external battery pack for longer backup time.

    SNMP slot for mission critical applications.

    Programmable output saves energy for important loads.

    Wide input voltage range and stable power supply extends battery lifetime.

    High input power factor (pf > 0.97) saves installation cost.

    Intelligent management prevents battery from overdischarge.

    Technical Specifications



    Model: GAIA-3K
    Power Rating: 3kVA

    Input
    Nominal Voltage: 200/208/220/230/240 Vac (single phase)
    Voltage Range: 130 ~ 275 Vac
    Frequency: 50 or 60 ± 5 Hz
    Power Factor > 0.97
    Electrical Connection: Power cord (IEC320 C14)

    Output
    Voltage: 200/208/220/230(default)/240 Vac (single phase) *
    Voltage Harmonic Distortion: < 3% (linear load), < 6% (computer load)
    Voltage Regulation ± 2%
    Frequency 50 or 60 ± 0.05 Hz
    Wave Form: Pure sine wave

    Overload Capability
    105 ~ 125%: 3 minutes
    125 ~ 150%: 30 seconds
    > 150%: 0.5 second

    Receptacle: IEC320 C13 x 3 x 2

    Battery
    Rating: 12V/8.5Ah, 2 pcs

    Charge Current: 0.6 ~ 1.2A (default 0.8A)

    Typical Backup Time : 12 minutes (half load), 4 minutes (full load)

    Interface
    Standard
    RS232 x 1, USB x 1, SNMP slot x 1

    Conformance

    Safety
    CE, EN62040-1

    EMC: EN62040-2 Class B

    Other Features

    Data Line Protector: Built-in (RJ11/RJ45, phone and network)

    REPO
    RJ11 connector

    Rail Kit: volitelně

    Tower Stand Kit: v balení

    External Battery Pack: volitelně

    Efficiency
    AC-AC > 87% (full load)

    Environment

    Operating Temperature: 0 ~ 40oC
    Relative Humidity: 5 ~ 95% (non-condensing)
    Audible Noise (at one meter): 45 dBA

    Physical
    UPS Dimensions(WxDxH): 440 x 335 x 89 mm
    UPS Weight: 13 kg
