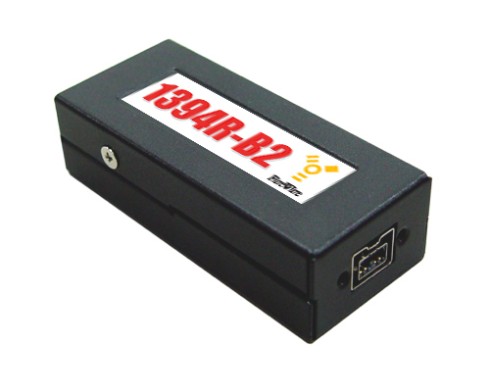

IOI 1394R-B2 FireWire 800 2port Repeater

1394R-B2 is a standard IEEE1394b repeater, extending your signal an additional 4.5 meters. It's easy to setup and there is no configuration necessary, like all IEEE1394 compliant hardware.

Description
This FW-repeater by IOI is made for extending your signal up to 4,5m for cable extension of FireWire cable.

Specification
- 2 Port FireWire-B Repeater (9pin)
- Signal extension up to 4,5m
- Chip: Texas Instruments TSB81BA3D
- Data transfer rate: up to 800Mbps
- 1394 Bus powered: DC 8V~33V, 1.35A
- Application for cable extension
- Size: 7,35 x 2 x 3,15cm (W/L/H)

Technical Specification
   * Fully Supports Provisions of IEEE P1394b Revision 1.33+ at 1-Gigabit Signaling Rates
   * Fully Supports Provisions of IEEE 1394a.2000 and 1394.1995 Standard for High Performance Serial Bus
   * Fully Interoperable With Firewire., i.LINK., and SB1394., Implementation of IEEE Std 1394
   * PHY: TI. TSB81BA3D
   * 1394 Bus Transfer Rate: 100 / 200 / 400 /800 Mbps
   * Power-Down Features to Conserve Energy
   * Low-power Sleep Mode
   * Device Interface: Provides Two Fully Backward Compatible, (1394a.2000 Fully Compliant) Bilingual P1394b Cable Ports at up to 800 Megabits per Second (Mbits/s)
   * 1394 Bus Powered: DC 8V~33V, max. 1.35A
   * Connectors:
         o Two Bilingual Cable Port with Jackscrew

Physical Dimensions
   * 7.35cm (W) x2cm (L) x3.15cm (H)

Výrobek je dodáván s manuálem pouze v anglickém nebo německém jazyce.
