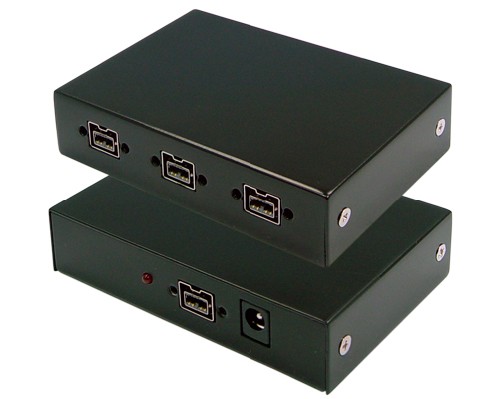

IOI 1394R-B4 FireWire 800 4port hub (repeater)

1394R-B4 is a four ports IEEE1394b repeater, extending your signal an additional 4.5 meters. It's easy to setup and there is no configuration necessary, like all IEEE1394 compliant hardware.
Technical Specification

   * Fully Supports Provisions of IEEE P1394b Revision 1.33+ at 1-Gigabit Signaling Rates
   * Fully Supports Provisions of IEEE 1394a.2000 and 1394.1995 Standard for High Performance Serial Bus
   * Fully Interoperable With Firewire., i.LINK., and SB1394., Implementation of IEEE Std 1394
   * PHY Chip: TI TSB81BA3D.
   * 1394 Bus Transfer Rate: 100/ 200/ 400/ 800 Mbps
   * Device Interface: Provides Four Fully Backward Compatible, (1394a.2000 Fully Compliant) Bilingual P1394b Cable Ports at up to 800 Megabits per Second (Mbits/s)
   * DC Power input Connector: Walkman-type 2.0 mm DC Jack
   * Power Input Range: DC 8V~30V, max. 1.35A
   * Power Consumption: Under 1.5 Watts.
   * Number of ports: Four Bilingual Cable Port with Jackscrew Lock Holes
   * Power LED

Physical Dimensions
   * 92(W)x62(D)x20.6(H)mm

Výrobek je dodáván s manuálem pouze v anglickém nebo německém jazyce.
bez napájecího zdroje - dodáván samostatně - viz související produkty
