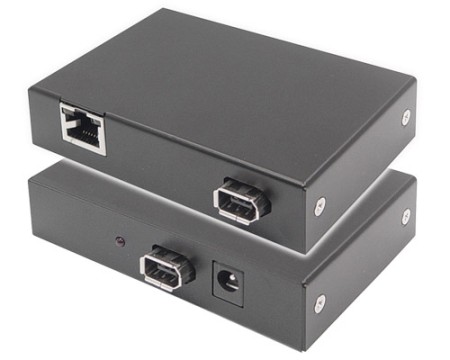

IOI FW-UTPS400 FireWire A 2-port na 1xRJ45 repeater

Pro vytvoření funkční sestavy jsou zapotřebí
2 x 61638, 2 x 41252 a křížený kabel RJ45 potřebné délky


FW-UTPS400 is two FireWire (1394a) to one RJ45 port S400 Repeater
FW-UTPS400 enables 1394 signals to be transmitted and received over Cat5 or Cat6 Unshielded Twisted- Pair (UTP) cable.
FW-UTPS400 is optimized to create long-haul IEEE 1394b-2002 connections over Cat5 or Cat6 at the S400 data rate, but it can also be used at S200 and S100.
FW-UTPS400 also works for Cat5-structured wiring cable that is typically installed in a home or office.

Fully Supports Provisions of IEEE 1394a.2000 and 1394.1995 Standard for High Performance Serial Bus
Fully Interoperable With Firewire, SB1394, DishWire, and i.LINK Implementation of IEEE Std 1394
Fully Supports Provisions of IEEE Std 1394b-2002 at S400B Signaling Rates
Equipped with a multi-rate adaptive equalizer which restore IEEE Std 1394b signals received over Cat 5 or Cat6 Unshielded Twisted Pair (UTP) Cable at 400 Megabits per Second (Mbits/s)
DC Power Connector: Walkman-type 2.0 mm DC Jack
Power Input Range: DC 8V~30V, max. 1.35A
Power & Link LEDs

The Delock repeater by IOI extends a FireWire A connection. Connect you PC or notebook with a RJ45 cable to the repeater to get a maximum extension of 55 m. You can connect several FireWire devices like e.g. external enclosures, digital cameras, camcorder, adapter etc. to the repeater.

Specification
• IOI item number: FW-UTPS400
• Data transfer rate up to 400 Mb/s
• Connection:    2 x FireWire A
                            1 x RJ45
• Power connection: DC Jack Walkman type 2 mm
• Power input: 8 V ~ 30 V, max. 1,35 A
• LED indicators for power and link

System requirements
• A free FireWire A port

Package content
• Repeater

Package
• Poly bag

Výrobek je dodáván s manuálem pouze v anglickém nebo německém jazyce.
