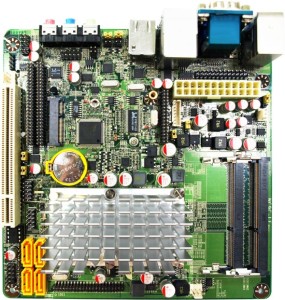

Jetway motherboard JNC9C-550-LF Intel Atom 1,5

  1. INTEL® Pineview-M + NM10 Chipset
  2. Support INTEL®ATOM N550 Dual-Core (1.50GHz) CPU
  3. Support 3Gb/s SATAII with RAID 0, 1 and JBOD
  4. Supports 2 * Gigabit LAN
  5. Integrated VIA VT1705 HD Audio Code with 6-Channel
  6. Support Watch dog Technology
  7. Compliance with ERP standard
  8. Mini-ITX Form Factor(170mm x 170mm)
  9. Support Daughter board Expansion

CPU INTEL ®Atom Dual-Core N550 CPU (45nm, FSB 667MHz, 1.50GHz, 512KB * 2 L2 Cache)
Chipset INTEL®Atom N550 + NM10 chipset, Build-in INTEL®GMA 3150 Graphics Core (DVMT Max. 384MB)
Memory 2 * SO-DIMM Sockets for un-buffered Single Channel DDR3 1333 SDRAM up to 2 GB
Expansion Slots 1 * PCI slot
Storage 4 * Serial ATA2 3Gb/s connectors support RAID 0, 1, JBOD, 1 * Mini PCI-E socket, 1 * IDE connector
Audio VIA VT1705 HD Audio Code with 6-Channel
Ethernet LAN Realtek RTL8111E PCI-E Gigabit Ethernet LAN
USB Embedded 7 * USB 2.0/1.1
Special Features Support ACPI S3 Support CPU Smart FAN & DC FAN
LVDS Onboard 18-bit Single Channel LVDS connector

Rear Panel I/O
4 * USB 2.0/1.1 ports
1 * PS/2 KB/MS connector
2 * RJ-45 port
1 * Audio I/O port ( Line-in, MIC and Line-out )
1 * VGA port
1 * COM port

Internal I / O
3 * USB 2.0 ports CPU / Chassis Fan connectors
1 * 24-pin ATX Power connector
1 * COM header ( COM2 for RS-232/422/485)
1 * AUDIO_IN header
1 * Parallel header
1 * GPIO header

BIOS Award 8MB DIP-SPI Flash ROM
Functional ATM, Automation, medical Equipment, Security, Networking, POS, General Application, Gaming Machine, Transportation, Financial Application
Packing Color Box Dimension:200(W) x 200(D) x 70(H)mm
Cases Gross Weight:15.4KGS
Cases Net Weight:10.3KGS 20 PCS / Cases
Case size : 720(L) x 410(W) x 200(H)mm
Certificate CE, FCC, RoHS
Temperature
Operating within 0~60 centigrade (Suggest to use system FAN)
Storage within -20-85 centigrade
Form Factor Mini ITX Form Factor (170mmx170mm)


Výrobek je dodáván s manuálem pouze v anglickém nebo německém jazyce.
