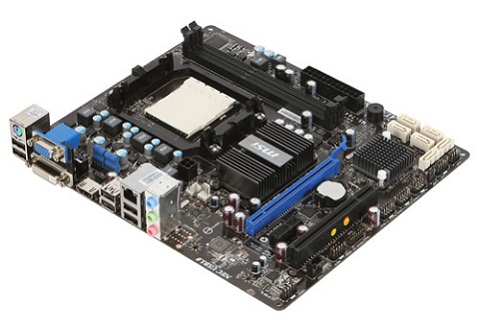

MSI 880GMS-E35 (FX)

CPU: • 64bit AMD® FX, Phenom II X6/X4/X3/X2, Athlon II X4/X3/X2 and Sempron CPU. Please refer to CPU Support for compatible CPU; the above description is for reference only. Hyper Transport Bus: • HyperTransport 3.0 supporting speed up to 5200MT/s Chipset: • AMD® 880G and SB850 Chipset Main Memory: • Supports two unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333 DRAM, 16GB Max Slots: • 1 PCI Express x16 slot with x16 operation (PCI Express Bus SPEC V2.0 compliant) • 1 PCI EXpress x1 slot • 1 PCI slot, support 3.3V/ 5V PCI bus Interface. On-Board SATA: • 6 SATA 6Gb/s (1~6) ports by AMD® SB850 • Supports storage and data transfers at up to 6Gb/s RAID Function: • SATA 1~6 support RAID 0, 1, 10 or JBOD mode by AMD® SB850 MSI Reminds You... • The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk. Audio: • Chipset integrated by Realtek® ALC887 • Flexible 7.1-channel audio with jack sensing • Compliant with Azalia 1.0 Spec LAN: • Realtek PCI-E GbLAN controller RTL8111E • Supports 10Mb/s, 100Mb/s and 1000Mb/s • Compliance with PCI-Express Bus specification v1.0a Internal I/O Connectors: • 1 x ATX 24-pin power connector • 1 x ATX 4-pin 12V CPU power connector • CPU x 1 / System x 1 FAN connectors • 1 x Front panel audio connector • 1 x Front panel connector • 1 x Chassis intrusion switch connector • 3 x USB 2.0 connectors • 6 x Serial ATA III connectors • 1 x Serial port connector • 1 x Clear CMOS jumper • 1 x SPDIF-out connector • 1 x TPM module connector Back Panel I/O Ports: • 1 x PS/2 keyboard or mouse port • 6 x USB 2.0 ports • 1 x Graphic Card port • 1 x DVI-D port • 1 x HDMI port • 1 x RJ45 LAN jack • 1 x 3 in 1 audio jack Dimension: • 24.4cm(L) x 20.5cm(W) Micro-ATX Form Factor Mounting: • 6 mounting holes
