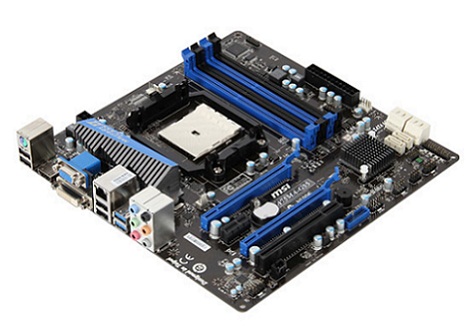

MSI A75MA-G55

CPU • AMD Liano APU in FM1 package Chipset • AMD® Hudson D3 Chipset Main Memory • Supports four unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600 DRAM, 32GB Max Slots • 2 PCI Express gen2 x16 slots - PCI_E1 supports up to PCIE x16 speed - PCI_E2 supports up to PCIE x4 speed • 1 PCIE x1 slot • 1 PCI x1 slot On-Board SATA • 6 SATA 6Gb/s ports by AMD® Hudson D3 - Supports storage and data transfers at up to 6Gb/s Audio • Chipset integrated by Realtek® ALC887 - Flexible 8-channel audio with jack sensing - Compliant with Azalia 1.0 Spec LAN • Realtek PCI-E GbLAN controller RTL8111E - Supports 10Mb/s, 100Mb/s and 1000Mb/s - Compliance with PCI-Express Bus specification v1.0a USB 3.0 • 2 USB 3.0 rear ports by AMD® Hudson D3 • 1 USB 3.0 onboard pinheader by AMD® Hudson D3 Internal I/O Connectors - 1 x ATX 24-pin power connector - 1 x ATX 4-pin 12V CPU power connector - CPU x 1 / System x 1 FAN connectors - 1 x Front panel audio connector - 1 x Front panel connector - 2 x USB 2.0 connectors - 1 x USB 3.0 connector - 6 x Serial ATA 6Gb/s connectors - 1 x Serial port connector - 1 x Parallel port connector - 1 x Clear CMOS jumper - 1 x TPM module connector - 1 x Chassis Intrusion connector Back Panel I/O Ports - 1 x PS/2 keyboard or mouse - 1 x Graphic Card port - 1 x HDMI port - 1 x DVI-D port - 4 x USB 2.0 ports - 2 x USB 3.0 ports - 1 x RJ45 LAN jack - 1 x 6 in 1 audio jack * HDMI and DVI-D can't output simultaneously. Dimension • 24.4cm(L) x 24.4cm(W) M-ATX Form Factor
