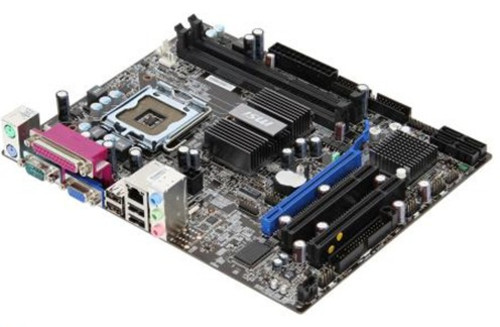

MSI G41M-P26

CPU • Supports Intel® Core 2 Quad/Core 2 Duo based processors in LGA775 package. • Supports Intel® Yorkfield, Wolfdale in the LGA775 package. • Supports Intel® next generation 45nm multi-core processors • Supports FSB 1333/1066/800 MHz. • Supports VRD 11.1 standard. • Supports FMB 05a@95W Chipset • Intel® G41 Chipset - Supports FSB 800/1066/1333 MHz. - Integrated Intel Graphics Media Accelerator (Intel® GMA X4500) - Supports Microsoft® DirectX 10 • Intel® ICH7 Chipset - Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 8 ports. - 4 SATAII ports with transfer rate up to 3Gb/s. - 1 channel Ultra ATA 100 bus master IDE controller. - PCI Master v2.3, I/O APIC. Main Memory • Supports two unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333* (OC) DRAM, 8GB Max Slots • One PCI Express x16 slot (PCI Express Bus SPEC V1.0 compliant). • Two 32-bit v2.3 master PCI bus slots. - Support 3.3v/5v PCI bus interface. On-Board IDE/SATA • One Ultra DMA 66/100 IDE controller integrated in Intel® ICH7 - Supports PIO, Bus Master operation modes. - Can connect up to two Ultra ATA drives. • SATAII controller integrated in ICH7 chipset - Up to 3Gb/s transfer speed. - Supports four SATAII ports by ICH7 Audio • Chipset integrated by VIA® VT1708S - Flexible 7.1-channel audio - Compliant with Azalia 1.0 spec LAN • Supports PCI Express LAN 10/100 Fast Ethernet by Atheros AR8132M Internal I/O Connectors - ATX 24-Pin power connector - 4-pin ATX 12V power connector - CPU x1/ System x2 FAN connectors - CD-in connector - Front panel audio connector - Front panel connector - 1 x chasis intrusion connector - 2 x USB 2.0 connectors - 1 x Floppy disk drive connector - 4 x Serial ATAII connectors - 1 x ATA100 connector - 1 x SPDIF-Out connector - Clear CMOS Jumper - 1 x Serial port connector - 1 x TPM module connector Back Panel I/O Ports - 1 x PS/2 keyboard - 1 x PS/2 mouse - 1 x Parallel port - 1 x Serial port - 1 x Graphics Card port - 4 x USB 2.0 ports - 1 x RJ45 LAN jack - 1 x 3 in 1 audio jack Dimension • 24.5cm(L) x 20.0cm(W) M-ATX Form Factor
