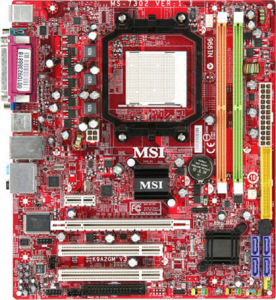

(Registrace)MSI MB Sc AM2+ K9A2GM-F V3, AMD 740+SB700, 2xDDR2,1xPCIe2.0x16,1PCI-Ex1,2xPCI,4xSATA2,uATX
CPU • Supports 64-bit AMD Phenom X4 / Phenom X3 processor (Socket AM2+) • Supports 64-bit AMD Athlon™ 64 / Athlon 64FX / Athlon 64 X2 / Sempron processor (Socket AM2) • Supports AMD CPU with 125W power requirement • For latest information on CPU s...Více info
Kód
PV003757
Part No.
K9A2GM-F V3
Výrobce
MSI
Záruka
36 Měsíce
Zaslat informaci o produktu známému
Základní informace
• Supports 64-bit AMD Phenom X4 / Phenom X3 processor (Socket AM2+)
• Supports 64-bit AMD Athlon™ 64 / Athlon 64FX / Athlon 64 X2 / Sempron processor (Socket AM2)
• Supports AMD CPU with 125W power requirement
• For latest information on CPU support list, please check http://global.msi.com.tw/index.php?func=cpuform for more detail
FSB
• HyperTransport 3.0 supporting speed up to 2600MHz
- AM2 CPU supports HyperTransport 1.0/2.0
- AM2+ CPU supports HyperTransport 3.0
Chipset
AMD 780G and SB700 Chipet
Main Memory
• Supports Dual DDR2 533/667/800/1066
• 4 DDRII DIMMs (240pin / 1.8V)
• Supports a maximum memory size up to 8GB
Slots
• One PCI Express X16 (PCI Express Bus SPEC V2.0 compliant)
• One PCI Express X1 slot
• Two PCI slots, support 3.3V/5V PCI bus interface
On-Board IDE
• One IDE port by AMD SB700
- Supports Ultra DMA 66/100/133 mode
- Supports PIO, Bus Master operation mode
- Can connect up to two IDE devices
On-Board SATA
• 4 SATA II (1~4) ports by AMD SB700
- Supports storage and data transfers at up to 3Gb/s
RAID Function
• SATA II 1~4 support RAID 0, 1, and 0+1 mode by AMD SB700
Audio
• Chipset integrated by Realtek ALC888
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
LAN
• Realtek PCI-E GbLAN controller 8111C
- Integrated Fast Ethernet MAC and PHY in single chip
- Support 10/100/1000Mb/s
- Compliance with PCI-Express Bus specification v1.0a
IEEE1394
• Chipset integrated by JMicron 381
- Transfer rate is up to 400Mbps
Internal I/O Connectors
- ATX 24-pin power connector
- ATX 4-pin 12V CPU power connector
- CPU / System x 1 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- Chassis intrusion switch connector
- 3 x USB 2.0 connector support additional 6 ports
- 1 x Floppy disk drive connector
- 4 x Serial ATA II connectors
- 1 x ATA133 IDE connector
- Clear CMOS jumper
- 1 x SPDIF-out header
- 1 x IEEE1394 connector support additional 1 port
- 1 x TPM module header
Back Panel I/O Ports
- 1 x HDMI port
- 1 x PS/2 keyboard
- 1 x PS/2 mouse
- 1 x IEEE1394 port
- 1 x 6 in 1 audio jack
- 4 x USB 2.0 ports
- 1 x RJ45 LAN jack
- 1 x Graphics Card port
Dimension
9.61 in (L) x 9 in(W) M-ATX Form Factor
Mounting
6 mounting holes
