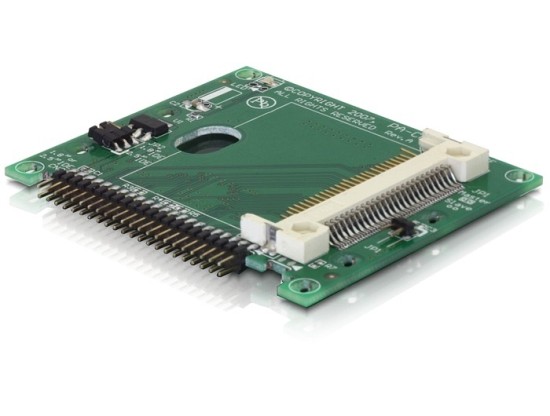

Redukce IDE 44-pin/1,8" HDD na CompactFlash

- Plošňák se slotem pro CompactFlash karty
- IDE konektor pro připojení IDE kabelem na základní desku
- Napájení přes IDE
- Jumpery pro Toshiba1,8"/Hitachi2,5"
- Master/Slave nastavení
- LED indikítor aktivity
- Pro CF I/II, IBM MicroDrive
- Lze připojit na IDE Hitachi 1,8" port a také na IDE 2,5"HDD.

Rozměry: 70.8 x60.5 x6.5mm


This converter by Delock is designed for connection of a Compact Flash card and can replace a 1,8“ Hitachi HDD due to its construction. The converter interface fits into the 2,5” IDE as well as into1,8” IDE port. Furthermore the pilot holes of the board comply with the holes of a 2,5” HDD, so that the converter can be installed e.g. into 2,5” mounting frame and be connected through a IDE 44pin port. The CF card works like a HDD and enables the installation for a operating system.

Specification
• For Compact Flash cards type I/II and IBM Microdrive (CF II) 50pin
• Connection for: 2,5” IDE 44pin
                              1,8“ IDE Hitachi
• Power via IDE Port
• Jumper settable for  2,5” IDE and 1,8“ IDE Hitachi
• LED indication for activity
• Bootable
• Supports DMA and Ultra DMA mode
• Dimension: 70.8mm x 60.5mm x 6.5mm

System requirement
• Windows 3.1/NT4/98SE/Me/2000/XP/Vista, Unix, Linux and DOS
• a free 44pin IDE 2,5 or 1,8” port

Package
• Delock poly bag
