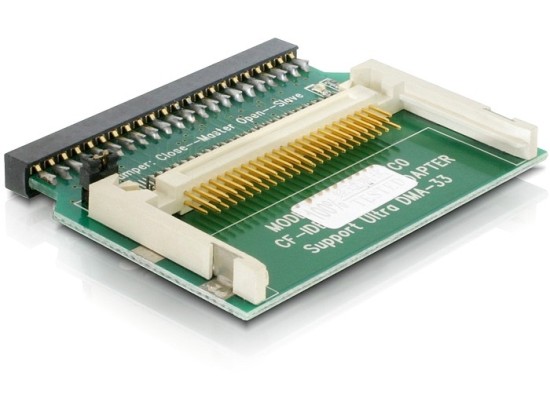

Redukce IDE 44-pin na CompactFlash (samice)

- plošný spoj se slotem pro CompactFlash karty, čtení a zápis na typy CF I a II
- napájení přes konektor používaný u 3,5" floppy
- žádné pohyblivé součásti
- možnost bootování

This Card Reader by Delock enables the application of a Compact Flash card via 44pin IDE interface. Since this Card Reader is bootable you can also use it as HDD and install a operating system.  The Card Reader can be plugged directly to a free IDE port on the Mainboard in vertical direction without using an additional connecting cable.

Specification
• IDE 44pin to CF Card
• 44pin 2.0 mm standard IDE female connector
• For Compact Flash type I, type II and Micro-drive
• Master or Slave mode selection
• 2x mounting wholes
• Power supply via IDE
• Supports DMA and Ultra DMA modes. A compatible flash media card will be required to use these modes
• Direct connection without cable
• Size: 51mm x 42mm

System requirement
• A free IDE 44pin connector
• For DOS, Windows 3.1/NT4/98SE/ME/2000/XP/Vista, Unix, Linux

Package content
• Card reader IDE to CF card

Package
• Delock poly bag
