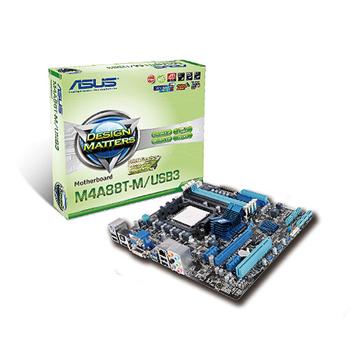

ASUS M4A88T-M/USB3

*Chipset: AMD 880G/SB710 *Patice: AMD Socket AM3 *Rychlost sběrnice: do 5200 MT/s; HyperTransport™ 3.0 *Procesor: AMD Socket AM3 ;Phenom™II /Athlon™II /Sempron™ 100 Series Processors *Paměti: 4 x DIMM, Max. 16 GB, DDR3 1866(O.C.)/1333/1066 ECC,Non-ECC,Un-buffered Memory *Rozšiřující sloty: 1x PCIe 2.0 x16, 2 x PCIe 2.0 x1, 1x PCI *Grafická karta: Integrovaná ATI Radeon™ HD 4250 GPU *Storage: SB710 Chipset- 1 xUltraDMA 133/100/66, 6 xSATA 3.0 Gb/s ports Support RAID 0,1,10,JBOD *LAN: Realtek® RTL8111E Gigabit LAN controller featuring AI NET 2 *Zvuk: VT1708S 8-Channel High Definition Audio CODEC *USB: 2 x USB 3.0 ports (blue, at the back panel), 10 x USB 2.0/1.1 ports (6 ports at mid-board, 4 ports at back panel) *Zadní panel I/O Porty: 1 x PS/2 Keyboard/Mouse Combo port, 1 x DVI, 1 x D-Sub, 1 x HDMI, 1 x LAN(RJ45) port, 8 -Channel Audio I/O, 2 x USB 3.0 ports (blue), 4 x USB 2.0/1.1 ports *Interní I/O konektory: 3 x USB 2.0 konektory, 1 x COM konektor, 1 x IDE konektor, 6 x SATA 3Gb/s konektor, 1 x CPU Fan konektor, 1 x Chassis Fan konektor, 1 x Front panel audio konektor, 1 x S/PDIF Out Header, 1 x MemOK! Button, 1 x LPT konektor, 24-pin EATX Power konektor, 4-pin ATX 12V Power konektor, 1 x System panel konektor *Formát desky: uATX
