Delock držák pro 2x 2,5" SATA HDD do PCI slotu

Description

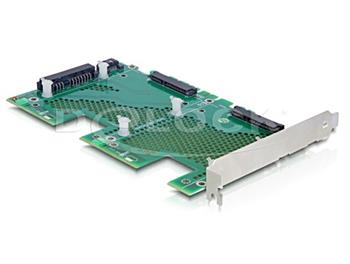

This PCI Express card by Delock is a SATA backplane and can either be inserted into a PCI or PCI Express slot. It enables the installation of up to two SATA 2.5 drives. e.g. HDD or SSD. The SATA drives can be connected to the two SATA 22pin ports and over the third SATA 22pin + 7pin port to your mainboard. The card provides holes for cooling the drives and 2 LEDs for access indication. By using the included extension pins you can use an additional PCI Express card and install up to two drives. Together with the existing card you can build up e.g. a RAID system.



Specification
• Suitable for PCI Express and PCI slot
• For connection of SATA 2.5 HDD and SSD
• Connection:
                         2x SATA 22pin for 2 SATA drives
                         (SATA 15pin power + SATA 7pin data)
                         1x SATA 22pin + 1x SATA 7pin mainboard connection
• 2x LED indicator for access
• 6 holes for extension pins
• Cooling holes
• Dimension: 171 x 113 x 23 mm

System requirement
• A free PCI or PCI Express slot

Package content
• PCI Express card
• 6 extension pins
