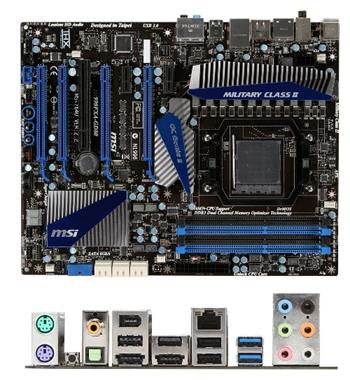

MSI 990FXA-GD80

CPU • 64bit AMD® FX, Phenom II X6/X4/X3/X2, Athlon II X4/X3/X2 and Sempron CPU in AM3 / AM3+ package. • HyperTransport 3.0 supporting speed up to 5200MT/s Chipset • AMD® 990FX and SB950 Chipset Main Memory • Supports four unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333/1600/1800*/2133* (OC) DRAM, 32GB Max Slots • 4 PCI Express 2.0 x16 slots • 2 PCI Express 2.0 x1 slots • 1 PCI slot, support 3.3V/ 5V PCI bus Interface. On-Board SATA • 6 SATA III (1~6) ports by AMD® SB950 - Supports storage and data transfers at up to 6Gb/s RAID Function - SATA III 1~6 support RAID 0, 1, 5, 10 mode by AMD® SB950 USB 3.0 • 2 USB 3.0 ports by NEC® D720200 Audio • Chipset integrated by Realtek® ALC892 - True Blu-ray Audio Support - Flexible 8-channel audio with jack sensing - Compliant with Azalia 1.0 Spec LAN • Realtek PCI-E GbLAN controller 8111E - Integrated Fast Ethernet MAC and PHY in single chip - Supports 10Mb/s, 100Mb/s and 1000Mb/s - Compliance with PCI-Express Bus specification v1.0a IEEE1394 / FireWire • VIA® VT6315N chipset - Supports up to two 1394 ports. (pinheader x2) - Transfer rate is up to 400Mbps. Internal I/O Connectors - 1 x ATX 24-pin power connector - 1 x ATX 8-pin 12V CPU power connector - CPU x 1 / System x 4 FAN connectors - 1 x Front panel audio connector - 1 x Front panel connector - 1 x Chassis intrusion switch connector - 2 x USB 2.0 connectors - 1 x USB 3.0 connector - 6 x Serial ATA III connectors - 1 x IEEE1394 connector - 1 x Serial port connector - 1 x Power button - 1 x Reset button - 1 x OC Genie button - 1 x Debug LED display - 1 x Clear CMOS jumper - 1 x SPDIF-out connector - 1 x TPM module connector Back Panel I/O Ports - 1 x PS/2 Keyboard port - 1 x PS/2 Mouse port - 1 x Claer CMOS button - 1 x Coaxial SPDIF-out - 1 x Optical SPDIF-out - 4 x USB 2.0 ports - 2 x USB 3.0 ports (blue) - 2 x eSATA / USB 2.0 Combo ports - 1 x RJ45 LAN Jacks - 1 x 6 in 1 audio jack Dimension • 30.5cm(L) x 24.4cm(W) ATX Form Factor
