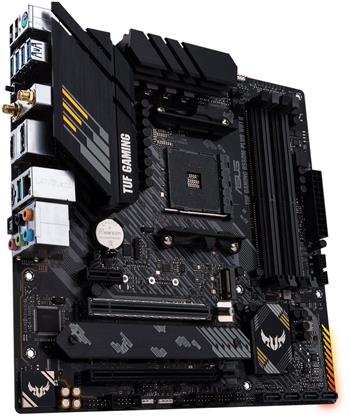

ASUS TUF GAMING B550M-PLUS WIFI II/AM4/mATX

Chipset: B550 Rozměrový formát: microATX (24.4cm x 24.4cm) Podpora pro procesory: AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors Pozice na paměti: 4 x DIMM DDR4, Dual Channel Memory Architecture Podpora pro paměti: DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Max.velikost operační paměti: 128 GB Podpora pro paměti typu: ECC Grafické výstupy: (na základě procesoru) *1 x DisplayPort *1 x HDMI port Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC Síťová karta: *TUF LANGuard *Wi-Fi 6 (802.11 a/b/g/n/ac/ax) *Bluetooth 5.2 Rozšiřující sloty: *AMD Ryzen 5000 Series/ 3000 Series Desktop Processors *1 x PCIe 4.0 x16 slot (supports x16 mode) *AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors *1 x PCIe 3.0 x16 slot (supports x16 mode) *AMD B550 Chipset *1 x PCIe 3.0 x16 slot (supports x4 mode) *1 x PCIe 3.0 x1 slot RAID řadič: RAID 0, 1, 10 SATA: 4 x SATA 6Gb/s ports M.2: 2 x M.2 slots (Key M) USB: *Interní: *1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports *2 x USB 2.0 headers support additional 4 USB 2.0 ports *Externí: *2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C) *4 x USB 3.2 Gen 1 ports (4 x Type-A, one port can be switched to USB BIOS FlashBack™) *2 x USB 2.0 ports (2 x Type-A) Interní porty: *Fan and Cooling related *1 x 4-pin CPU Fan header *1 x 4-pin CPU OPT Fan header *2 x 4-pin Chassis Fan headers *Power related: *1 x 24-pin Main Power connector *1 x 8-pin +12V Power connector *Storage related: *2 x M.2 slots (Key M) *4 x SATA 6Gb/s ports *USB *1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports *2 x USB 2.0 headers support additional 4 USB 2.0 ports *Miscellaneous: *1 x Addressable Gen 2 header *2 x AURA RGB headers *1 x Clear CMOS header *1 x COM Port header *1 x Front Panel Audio header (AAFP) *1 x Speaker header *1 x SPI TPM header (14-1pin) *1 x 10-1 pin System Panel header Externí porty: *2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C) *4 x USB 3.2 Gen 1 ports (4 x Type-A, one port can be switched to USB BIOS FlashBack) *2 x USB 2.0 ports (2 x Type-A) *1 x DisplayPort *1 x HDMI port *1 x Wi-Fi Module *1 x Realtek 2.5Gb Ethernet port *5 x Audio jacks *1 x Optical S/PDIF out port *1 x BIOS FlashBack button *1 x PS/2 Keyboard/Mouse combo port BIOS: UEFI AMI BIOS, 256 Mb Flash ROM
