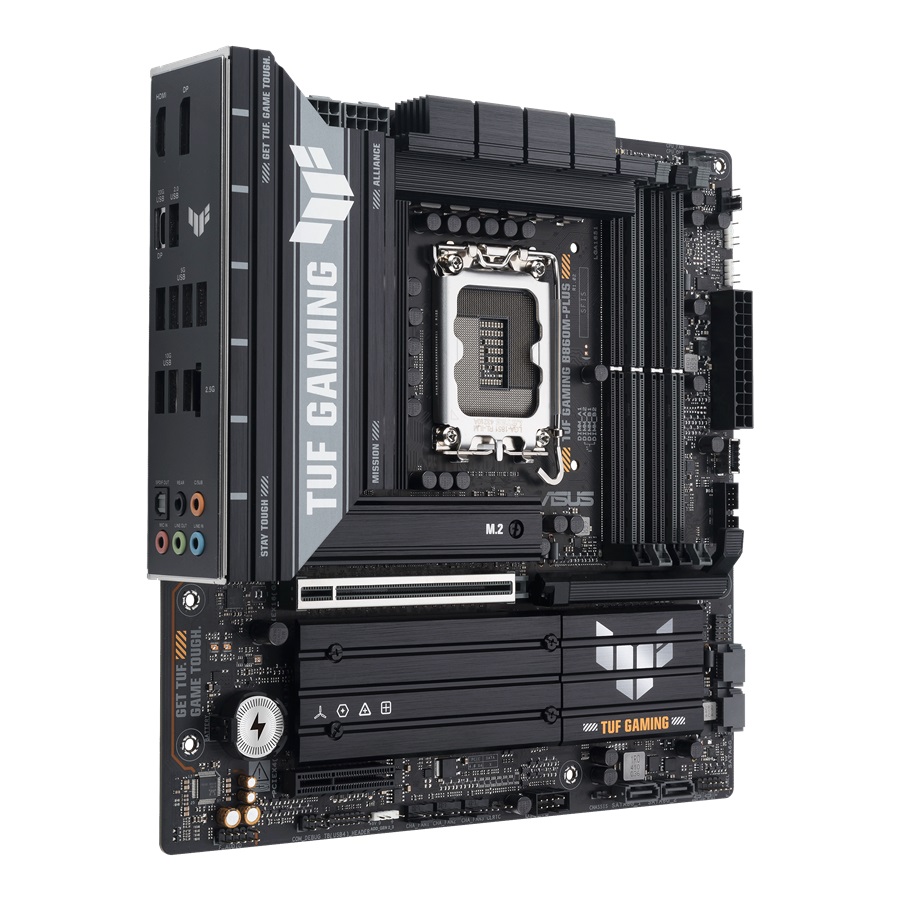

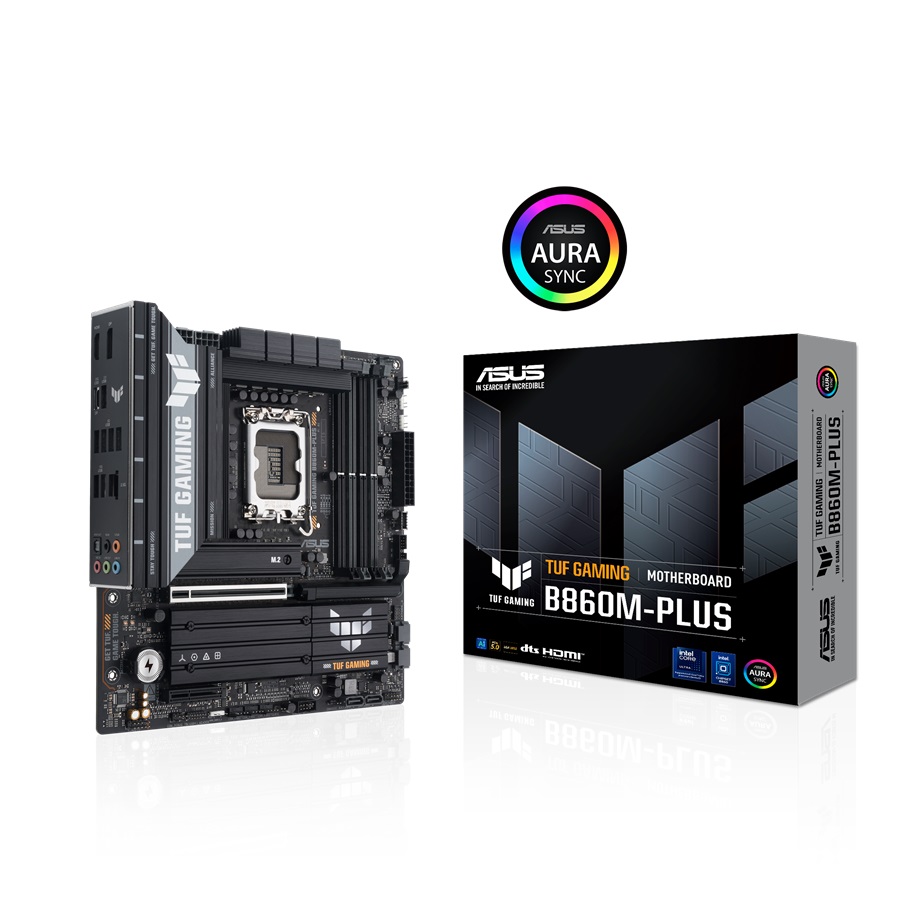

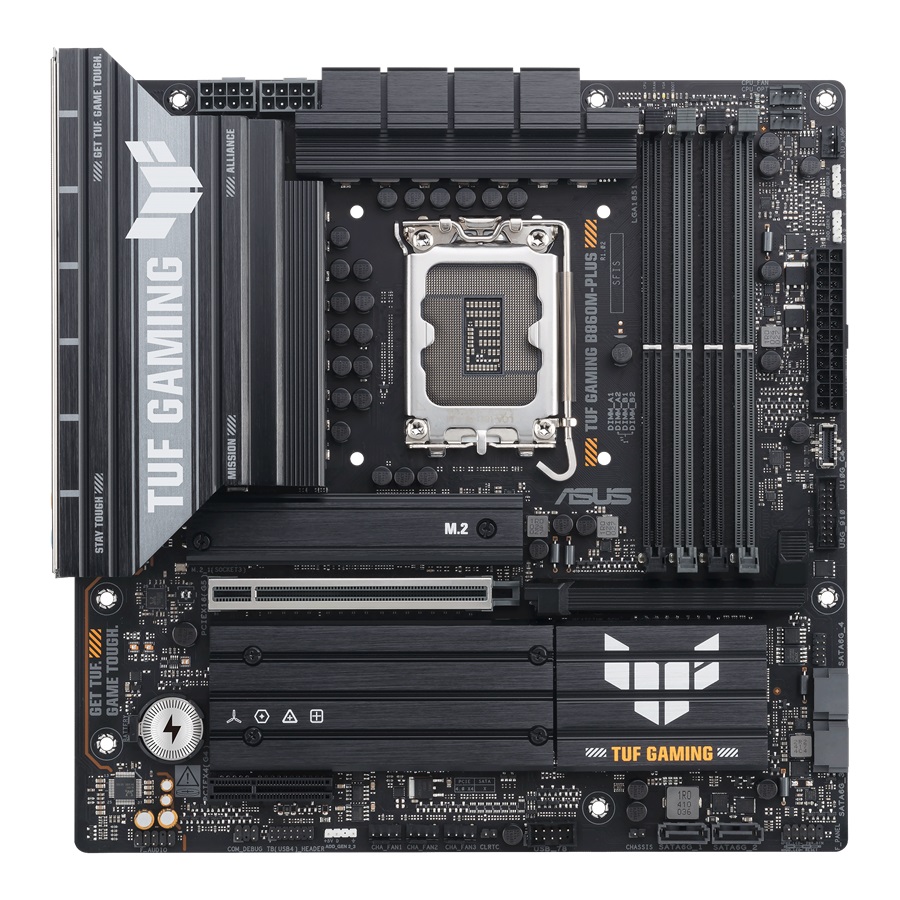

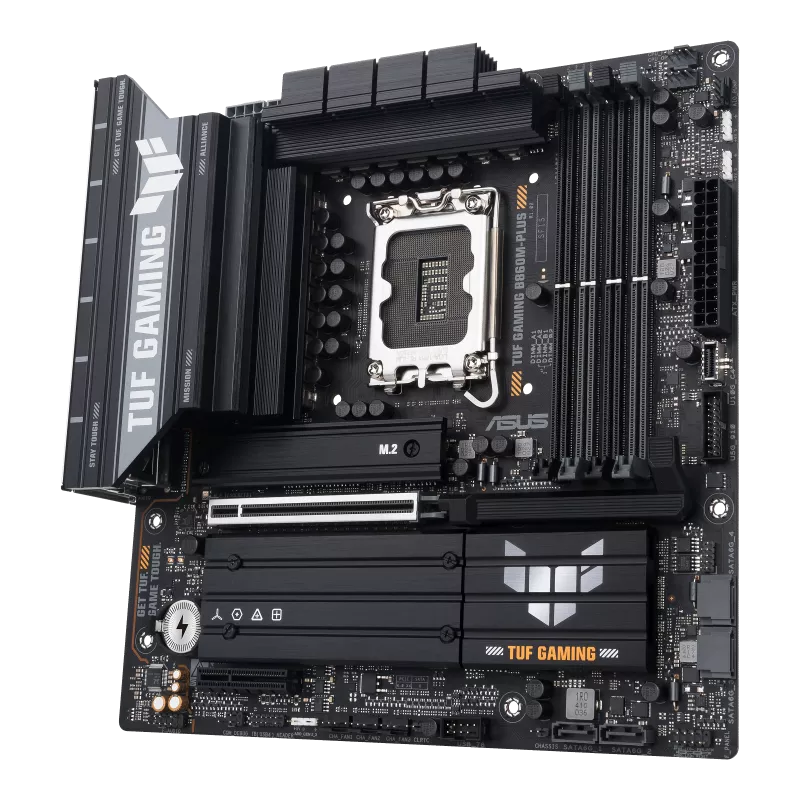

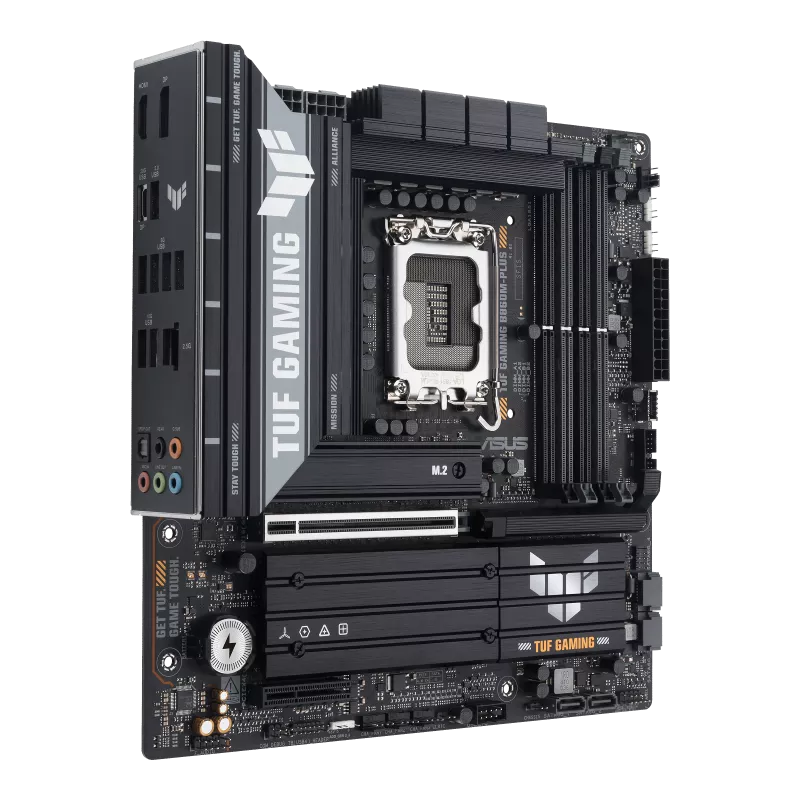

ASUS TUF GAMING B860M-PLUS

ASUS TUF GAMING B860M-PLUS * mATX Form Factor CPU: Support Intel® Core™ Ultra Processors (Series 2) LGA1851, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Chipset: Intel® B860 Chipset Paměť: 4 x DIMM slots, max. 192GB, DDR5 - Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) *Dvoukanálová paměťová architektura *Osazení DIMM *Podporuje paměťový modul Intel® Extreme Memory Profile (XMP) *ASUS Enhanced Memory Profile III(AEMPIII) Grafické porty: *1 x DisplayPort** *1 x HDMI™ port*** *1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output Rozšiřující sloty: Intel® Core™ Ultra Processors(series 2) *1 x PCIe 5.0 x16 slot Intel® B860 Chipset *1 x PCIe 4.0 x4 slot Úložný prostor: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Core™ Ultra Processors(series 2) *M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset *M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) *M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) *4 x SATA 6Gb/s ports Ethernet: *1 x Realtek 2.5Gb Ethernet *TUF LANGuard USB: Zadní USB (Total 7 ports) *1 x USB 20Gbps port (1 x USB Type-C®) *2 x USB 10Gbps ports (2 x Type-A) *4 x USB 5Gbps ports (4 x Type-A) *1 x USB 2.0 port (1 x Type-A) Přední USB (Total 7 ports) *1 x USB 10Gbps connector (supports USB Type-C®) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *1 x USB 2.0 headers support 2 additional USB 2.0 ports Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC Audio Features *Audio Shielding *Rear optical S/PDIF out port *Premium audio capacitors *Dedicated audio PCB layers Vstupy/výstupy zadního panelu: *1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) *2 x USB 10Gbps ports (2 x Type-A) *4 x USB 5Gbps ports (4 x Type-A) *1 x USB 2.0 port (1 x Type-A) *1 x DisplayPort *1 x HDMI™ port *1 x Realtek 2.5Gb Ethernet port *5 x Audio jacks *1 x Optical S/PDIF out port Interní vstupy/výstupy: Ventilátory a chlazení: *1 x 4-pin CPU Fan header *1 x 4-pin CPU OPT Fan header *1 x 4-pin AIO Pump header *3 x 4-pin Chassis Fan headers Napájení: *1 x 24-pin Main Power connector *2 x 8-pin +12V CPU Power connectors Úložiště: *3 x M.2 slots (Key M) *4 x SATA 6Gb/s ports USB: *1 x USB 10Gbps connector (supports USB Type-C® ) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *1 x USB 2.0 header supports 2 additional USB 2.0 ports Různé: *3 x Addressable Gen 2 headers *1 x Clear CMOS header *1 x Chassis Intrusion header *1 x Front panel audio header (F_AUDIO) *1 x 10-1 pin Front System Panel header *1 x Thunderbolt™ (USB4®) header Příslušenství: Kabely: *2 x SATA 6Gb/s cables Různé: *2 x M.2 Rubber Packages *1 x TUF Gaming sticker *1 x Screw package for M.2 SSD Dokumenty: *1 x Quick start guide
